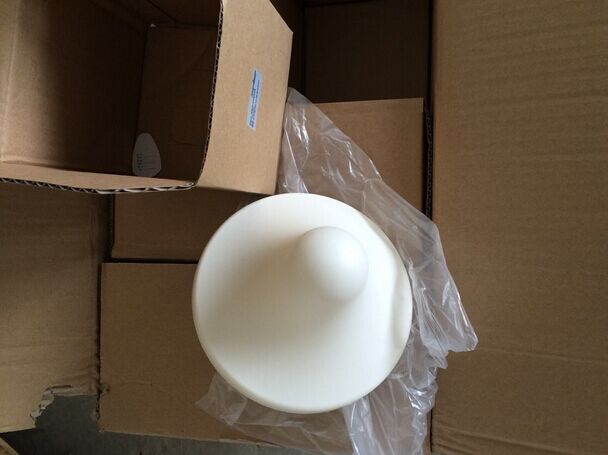

Indoor Ceiling Type Omnidirectional Antenna Suck the top antenna is a kind of system for mobile communications antenna, it is mainly used for indoor coverage.
Outdoor are tabular antenna signal coverage, large power, strong signal, covering far;
Relatively speaking, the indoor coverage, such as the venue, hotels, office buildings, residential buildings, cinemas, etc., need to adopt the indoor distributed system to cover, with a small antenna, appearance is more beautiful, do not affect indoor and much more, small power, covering a layer of building.
General antenna will have mobile or unicom brand trademark, a see will know that is covered in whose system.White hat is the antenna body down, outward radiation signals, the bending upwards of the rope is feeder and introduce the signal from the mobile base stations to the antenna.
Details
Name: antenna suction a top indoor antennas
Frequency (800 MHz) - 960/1710-2500 double frequency
The gain (dBi) 2-3.5
Vertical polarization mode
Standing wave ratio of 1.5 or less
Input resistance (Ω) 50
Maximum power (W) 50
The dc grounding lightning protection
Joint model N - F
45 * ø 190 antenna size (mm)
Antenna weight (0.25 kg)
Radiation oscillator copper materials
Reflector electrolytic plate material
Prevent ultraviolet ABS radome materials
Working temperature (℃) - 40 ~ 60
